Description & Specifications
|

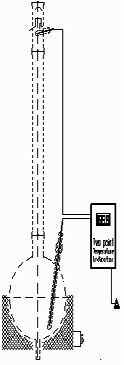

In this part we have introduced equipment for efficient measure and control like Digital temperature indicators and controllers, Electromagnet and timers for reflux control and Liquid level controller. DIGITAL TEMPERATURE INDICATOR This instrument is mainly used to monitor the temperature of liquid in a glass vessel in a typical glass distillation unit.The instrument consists of a Temperature indicator and a Resistance Temperature Detectors (RTD). The instrument works on 230V, 50Hz power supply. This displays the temperature in degree Centigrades in three and half digits of 12.5mm character height. Cat. Ref. Vessel size RTD Length DTI20 20 400 DTI50 50 500 DTI100 100 600 DTI200 200 700 TWO POINT DIGITAL TEMPERATURE INDICATOR This instrument is mainly used to monitor the temperature of liquid in a glass vessel and temperature of vapours at reflux divider in a typical glass distillation unit. The instrument consists of a Temperature indicator and two Resistance temperature detectors (RTDs). The instrument works on 230V, 50Hz power supply. This displays the the temperature in degree Centigrades in three and half digits of 12.5mm character height. A switch is provided to see the two temperatures alternatively. Cat. Ref. Length Vessel size RTD Length for vessel RTD Length for reflux divider DTT20 20 400 200 DTI50 50 500 225 DTI100 100 600 250 DTI200 200 700 300 |
