Description & Specifications
|

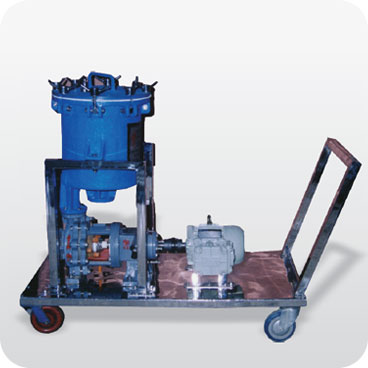

EPP has a long-standing experience in designing and manufacturing different types of filters for various applications in industries like pharmaceutical, dyes and intermediaries, fertilizers, chemicals, food processing and petrochemicals. EPP offers Nutsche Filters, Disc Filters and Cartridge Filters. EPP offers various types of industrial filters namely Nutsche Filters and Disc / Sparkler Filters. NUTCHE FILTER STAIRCASE The Nutsche Filters are the simplest type of batch filters using cloth as the filtering media; largely used in laboratories and small plants for the separation of mother liquor from the slurry. It can be manufactured for operating under vacuum up to 720 mm of Hg. Material of Construction Filter Body PP / FRP, PPH / FRP, PVC / FRP, PVDF / FRP Filter Plate PP, PPH, PVC, PVDF Pump PP, PVC, PVDF Advantages » The filter works as a completely closed system, eliminating any possibility of atmospheric pollution from toxic fumes / obnoxious smell generated from the slurry. » Very high solvent recovery is possible. » Explosion or fire hazard on account of spillage is eliminated. » Manpower saving as all operations can be handled by a single unskilled person with little training. » Very effective washing of cake due to re-slurrying resulting in thorough particulate washing and reduces number of washes and volume of wash liquor. Applications » Chemical processing plants » Pharmaceutical plants » Pesticides, dyes and intermediate industries » Paper and pulp plants » Electroplating plants DISC / SPARKLER FILTERS The Disc / Sparkler Filters are used for filtration of low viscous fluids with small quantities of suspended solids and almost always operated under pressure and can be offered for operating pressures of upto 6 kg / cm². The disc filters can be designed to suit the fluid flow and particle content in the fluid. These are usually portable assemblies, enabling mobility and ease in operations. These filters are offered with recirculation pump and total assembly mounted on trolley to mobilize the filter in plant or factory. Material of Construction Filter Body PP / FRP, PPH / FRP, PVC / FRP, PVDF / FRP Filter Plate PP, PPH, PVC, PVDF Pump PP, PVC, PVDF Advantages » Increased productivity » Extended product life » Optimized filtration space with same dimension facilities » Possibility of adapting the filter to existing facilities » Reduction in the frequency of maintenance operations » Increase in tonnage of up to 40% while ensuring a constant humidity level in the filter cake Applications » Nickel chloride carbon treatment » Acid copper continuous filtration » Bath reconditioning » Carbon treatment tank polish and beverage polishing |
