Description & Specifications
|

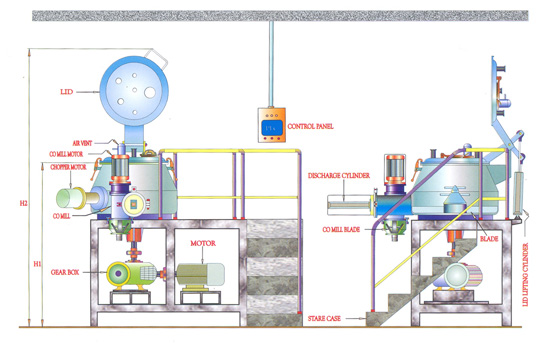

Our rapid mixer granulator designed to achieve fast dry mixing, homogeneous binder distribution and making wet granules in the same bowl. The machine performs mixing and granulation with the help of specially designed mixing bowl, dual speed main impeller, 4 blade chopper very precisely and effectively which leads to faster tableting speeds with improved quality and least rejections. All contact parts made from ss316 / ss304 grade and entire machine designed to confirm cgmp standards. The entire process is fully closed, safe, dust free and automatically discharges the materials. Salient Features : Specially designed plain mixing bowl provided with counter-balanced lid, vents,view-ports and charging hole. Main impeller consists of dual speed 750/1500 tefc motor coupled with drive mechanism which facilitates inside wash Facility for quick change-over and also prevents powder leakage from bottom. The chopper drive of the rapid mixer granulator consists of dual speed (1440/2800 synchronous speed) tefc motor. The Motor shaft is of s. S. And the chopper has specially designed 4 blade s. S. Impeller. The shaft is integral with the motor. The assembly in the rapid mixer granulator is mounted horizontally into the bowl. Discharge port will be provided with pneumatic cylinder. (directly coupled with discharge plug) discharge port provided with 3 position solenoid valve to open and close at desired levels, thereby regulating the discharge and preventing discharge of large lumps. Internal surface of all the vessels will be ground and polished to mirror finish. Mounting structure fabricated of rigid square pipes of M. S. Cladded with SS dimpled sheet & polished to matt surface finish.MODEL CPM25 CPM50 CPM100 CPM150 CPM300 CPM400 CPM600 CPM750 CPM900 CPM1200 Gross Cap. (ltrs) 25 50 100 150 300 400 600 750 900 1200 Working Cap. (ltrs) 17 35 80 120 240 320 480 600 720 900 |
